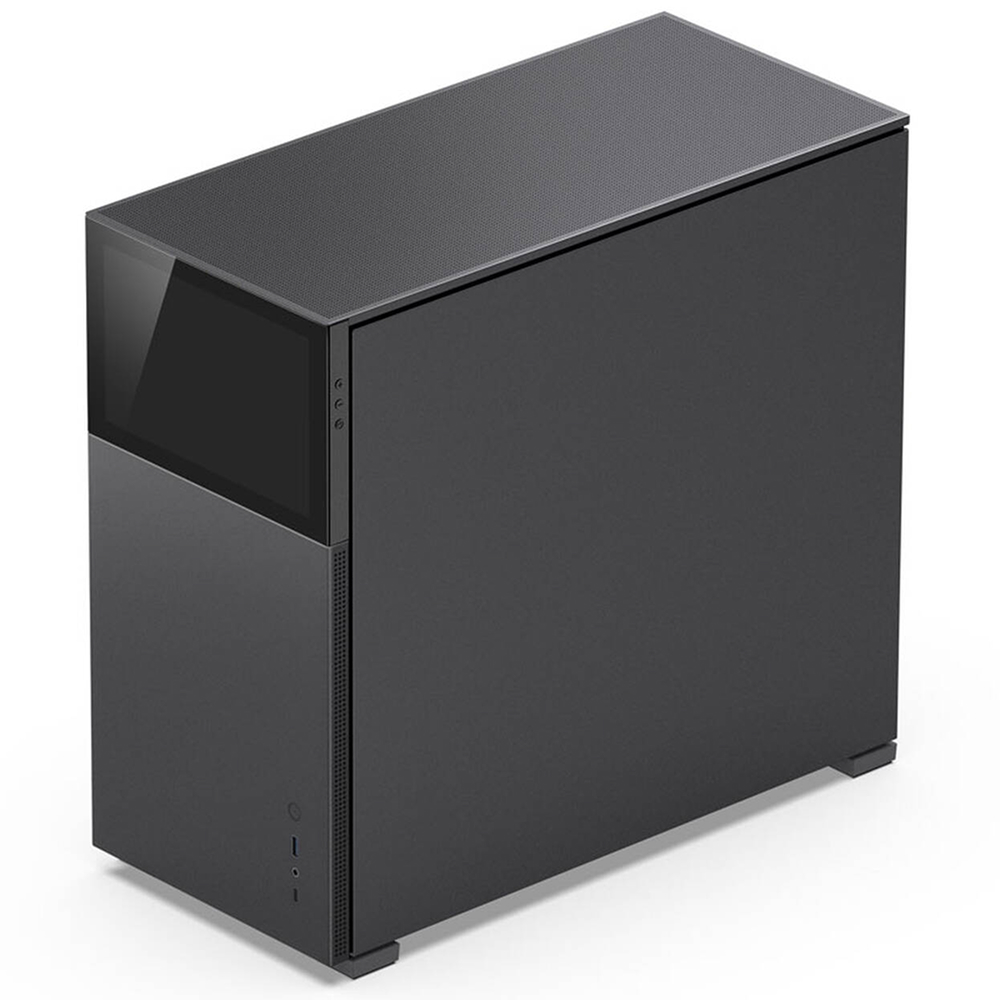

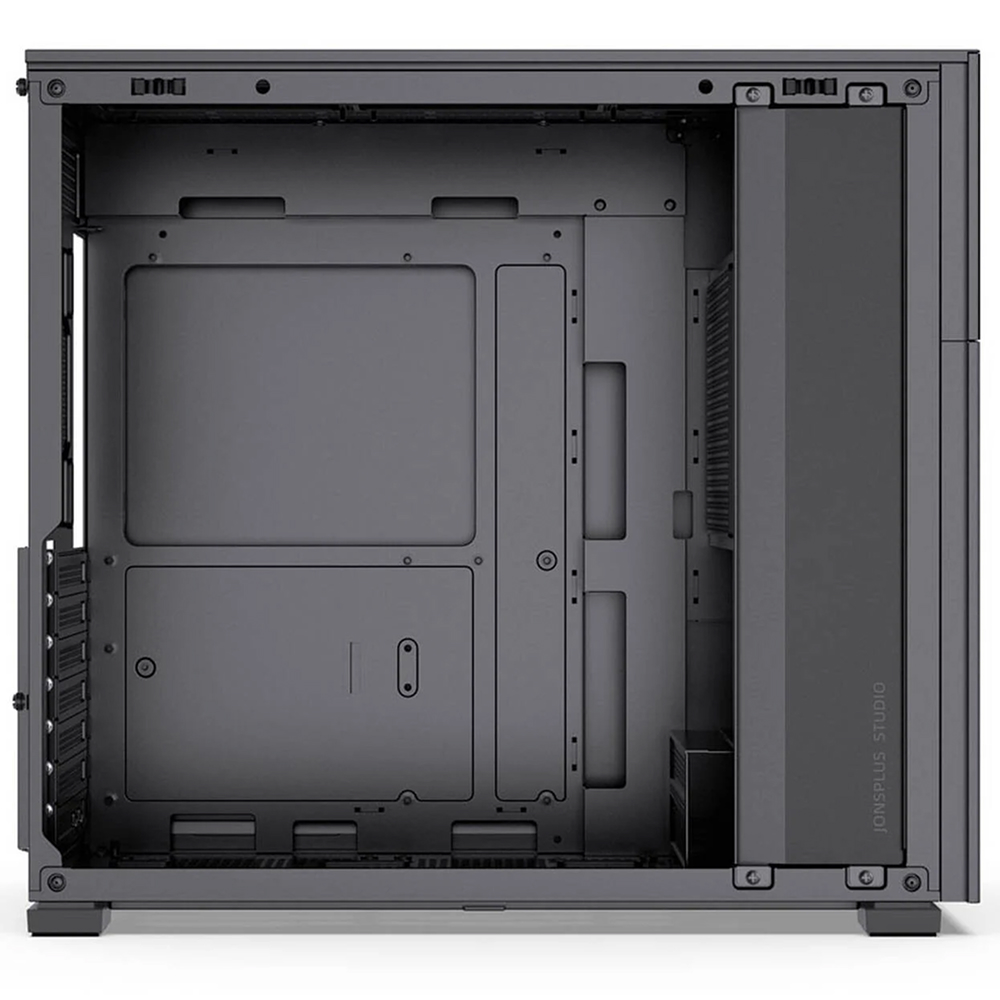

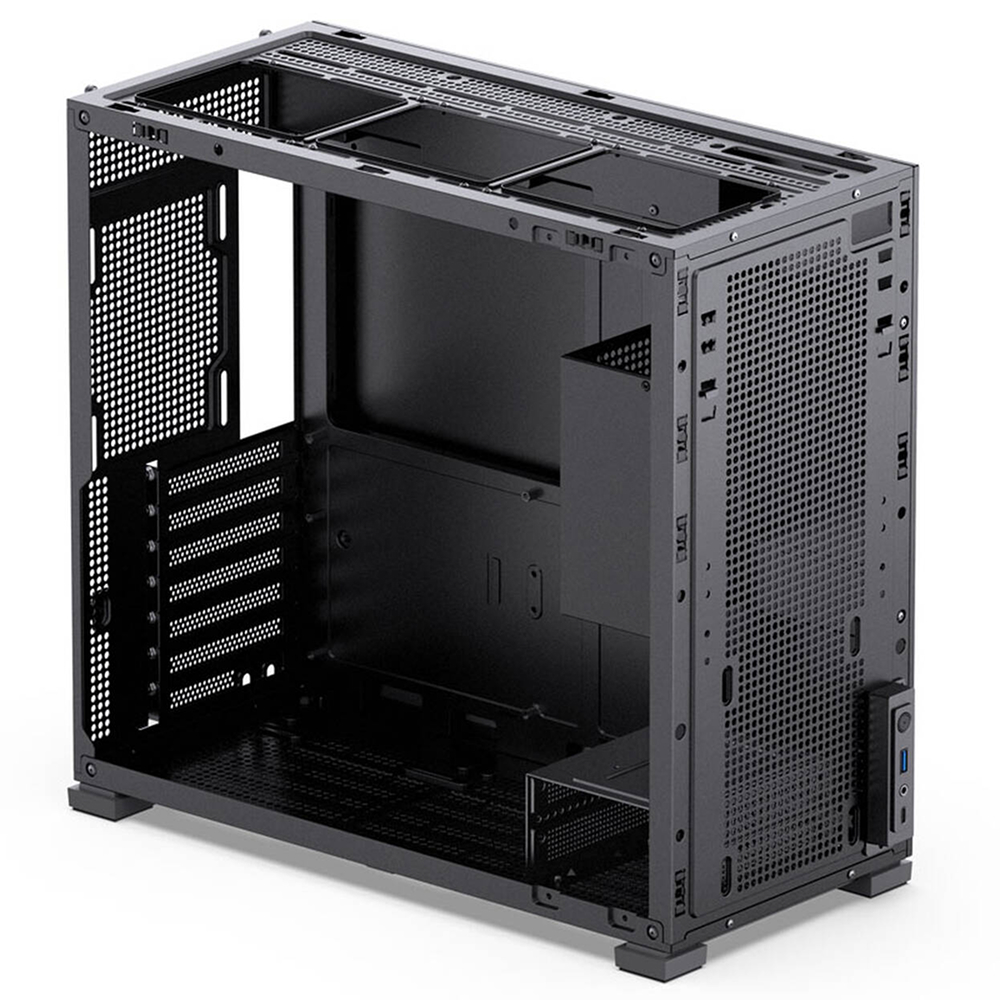

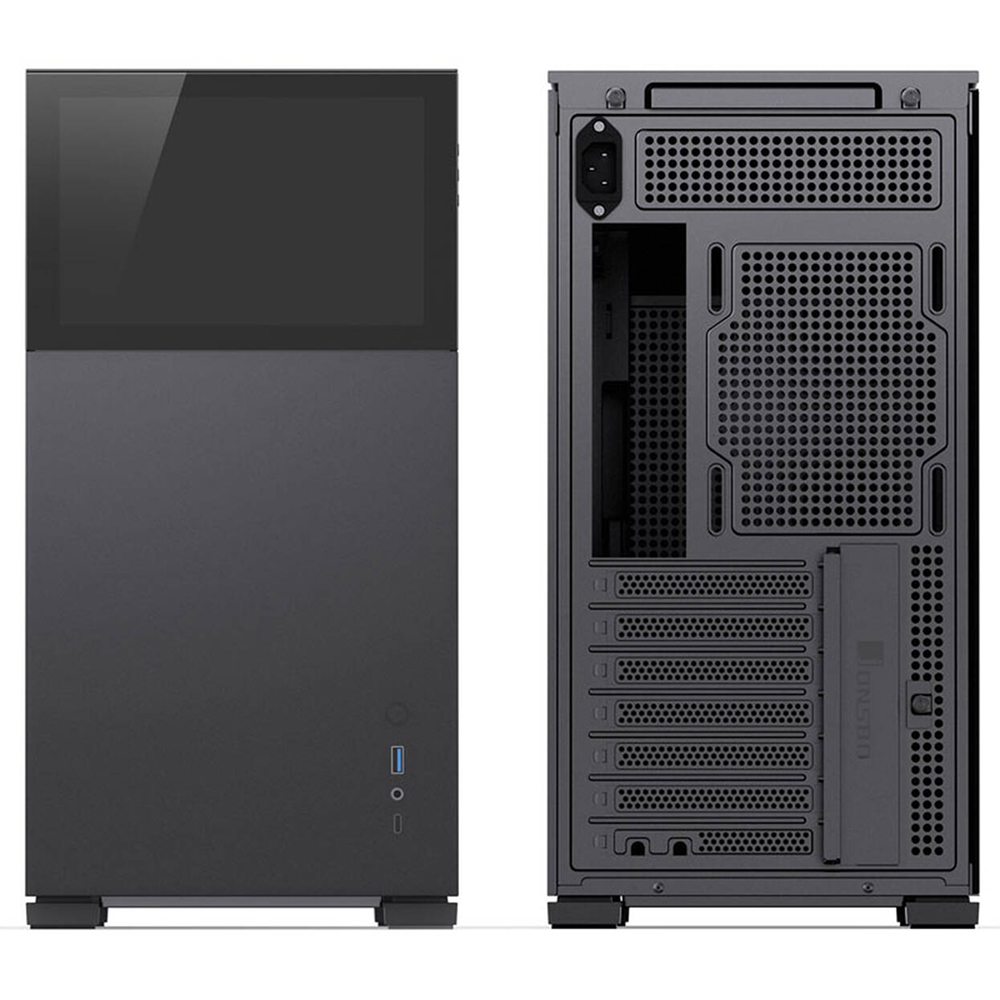

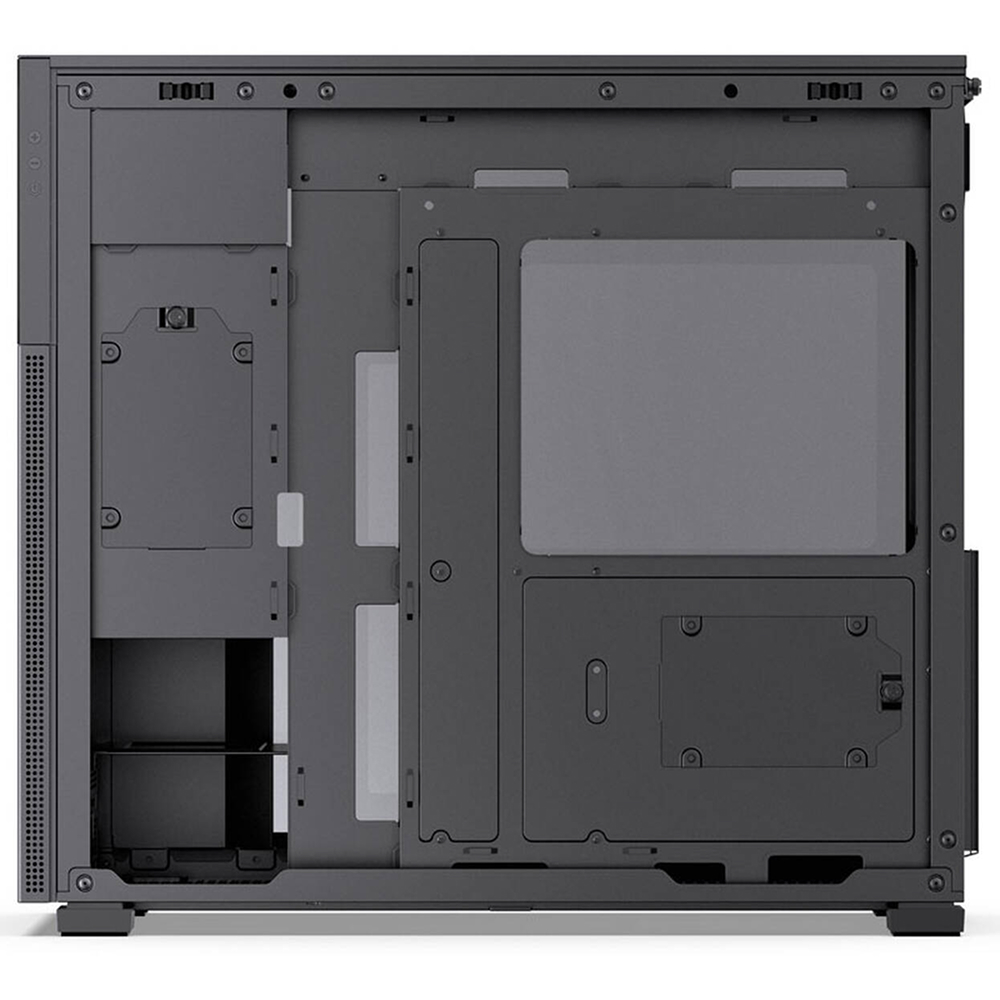

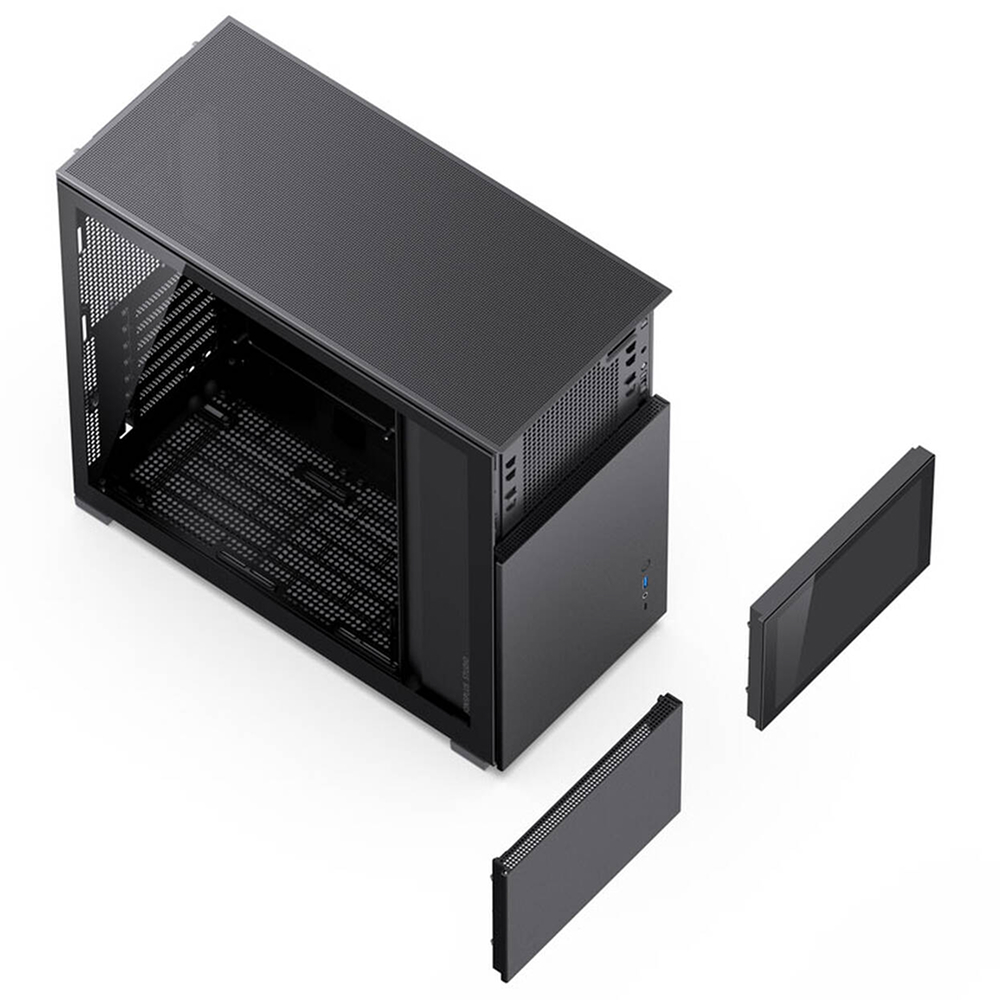

Jonsbo D41 Screen, Tempered Glass, Black

(0 klientu atsauksmes)
Jonsbo

SKU: D41-STD-BLACK-SC

Apgaismojums: Nē
Korpusa Formāti: Mid-Tower
Saderīgs: ATX, mATX
Pieejamība: 1 ir pieejams
Veikals Rīgā (G.Dambis 36)
1
€114.90
Ielikt grozā
Vēlmju saraksts
Salīdzināt
Short vertical air duct is constructed for heat dissipation
The heat flow in the space will rise naturally. The D41 follows this characteristic to build the air duct: it supports up to 8 or 12CM fans (or 4 14CM+2 12CM fans).
Thanks to the relatively low box height, the vertical air flow from bottom to top quickly covers the heating hardware, and the internal accumulated heat is discharged from the top mesh. In addition, the installation direction of the power supply can be bidirectional: the power supply air inlet can face the panel direction, without interfering with the internal air duct under the air cooling radiator environment.
D41 Install ATX Motherboard
The GPU calculation length includes the total length of the pci-e block
The length of the GPU is affected by the orientation of the power supply

D41 Install ATX Motherboard
When three 12cm fans are installed on the top, the power supply can be installed in the second hanging position.
D41 Install ATX Motherboard
if 360AIO is installed on the top, it is recommended to install the power supply with a length of 14cm to obtain a longer GPU installation control
D41 Install ATX Motherboard
When the length of the GPU supply is <330mm, the power supply can be installed in the fourth hanging position.

Cooling system support specifications

TOP：120mm*3 or 140mm*2(Optional )
REAR：120mm*1(Optional )
BOTTOM：120mm*3 or 140mm*2(Optional )
FRONT：120mm*1(Optional )

AIO SUPPORT：
TOP：120/240/280/360*1
REAR：120*1
BOTTOM：120/240/360*1
Zīmols Jonsbo
Svars 8kg
Krāsa Melna
Apgaismojums Nē
Korpusa Formāti Mid-Tower
Saderīgs ATX, mATX
Procesora Dzesētāja Maksimālais Augstums 168 mm
Video Kartes Maksimālais Garums 400 mm
Barošanas Bloka Maksimālais Garums 220 mm
Ventilatoru Skaits Nav
Ventilatoru Maksimālais Atbalsts 8
